Power IO Shield Power supply

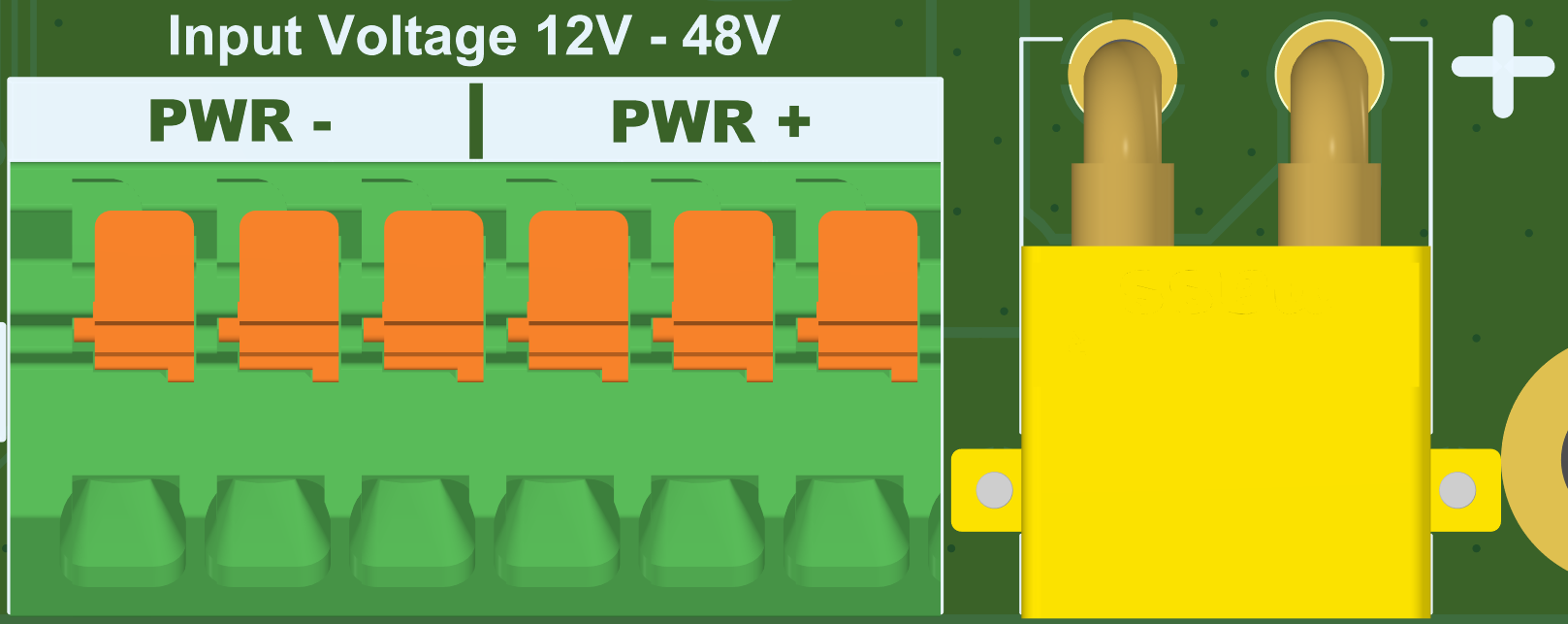

The Power IO Shield requires an external power supply to operate the output pins. The shield is designed to handle a wide range of input voltages, from 12V to 48V DC.

Power Mux

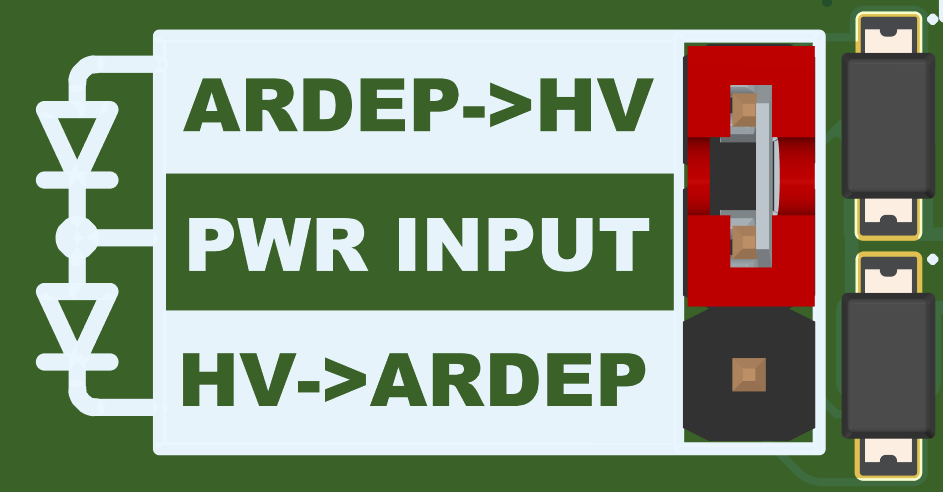

Use the jumper to switch between two power inputs:

• Ardep’s VIN

• Power IO Shield’s Power Input
